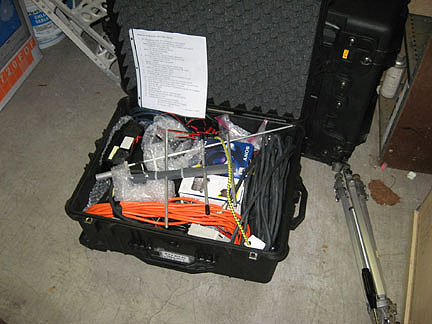

SJ RACES ATV Kit, complete UHF transmission including gel-cell battery.
|
 |

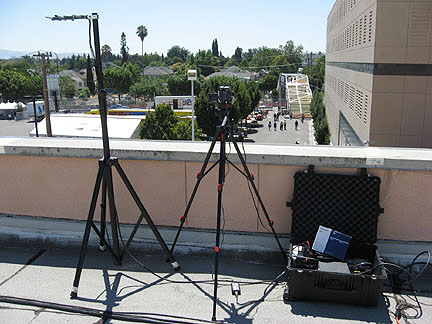

SJ RACES ATV kit deployed on hotel roof during SJ Grand Prix.
|
 |

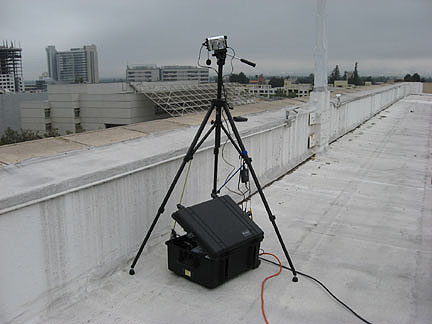

SJ RACES ATV kit deployed on convention center roof during SJ Grand Prix.
|
 |

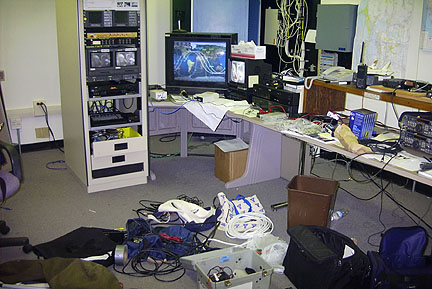

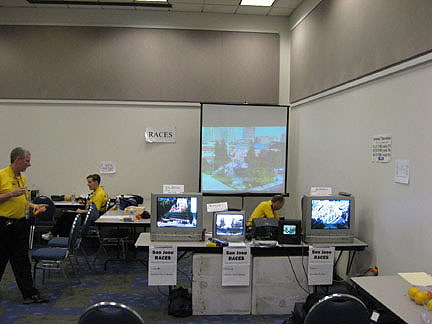

Received ATV transmissions at SJ RACES Grand Prix command post.
|
 |
Portable TV set receiving ATV transmission during SJ Grand Prix. View is Almaden Blvd bridge.
|
 |
ATV system, standalone and battery powered, provided video uplink and downlink to and from
K6BEN-ATV from FARS Field Day site. Transmissions were viewed throughout south bay area.
|
 |

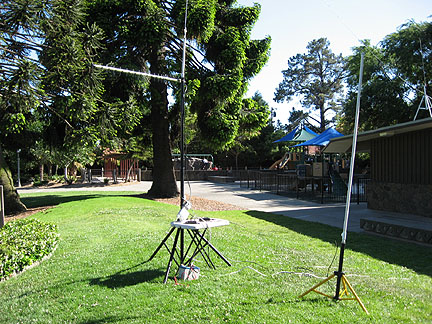

Same ATV system as above (camera and TV set located 50 feet away) setup at SARES Field
Day site. Shown is on MFJ tripod is 1.2GHz uplink antenna, SVECS UHF J-pole downlink antenna.
Antenna on right is an Ed Fong dualband antenna for 2-way voice comms.
|
 |

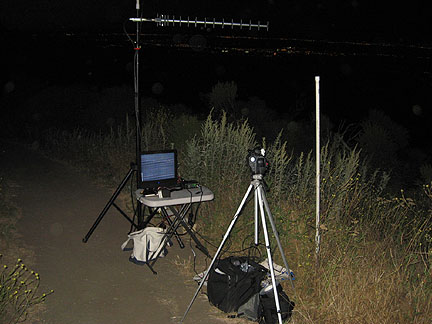

ATV system on top of Skyline Blvd. Shown is 1.2GHz uplink to K6BEN ATV repeater, UHF J-pole
for receive on top (out of camera view). Flatscreen TV set, 12VDC and cable ready, on
foldable table. White bag has gel-cell battery. Camera on tripod. On right is dualband antenna
for 2-way voice comms. Black bag for small items and accessories.
|
 |

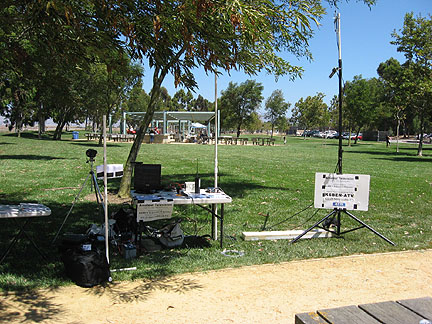

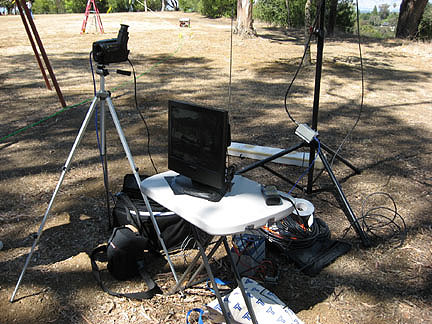

ATV system at Linux Picnic.
|
 |
Simplex ATV 100mW UHF transmitter with camera on tripod (next to wall) at 2007 NASA
Ames Emergency Prepardness Day. All battery powered.
|
 |

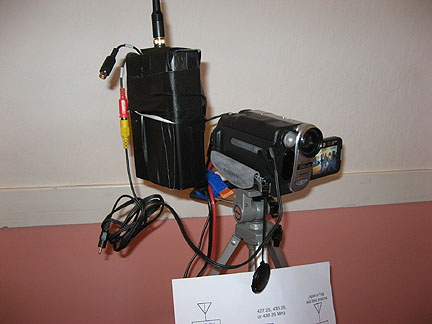

Closeup of simplex ATV above. VideoLynx 100mW transmitter packaged inside box.
|
 |

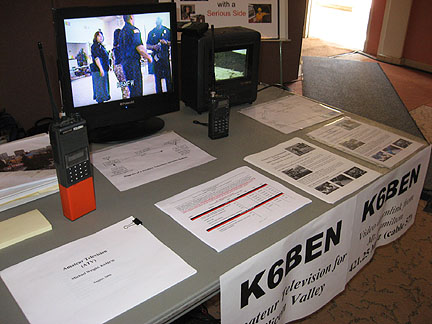

TV set showing received video transmission from simplex ATV above. TV set on right shows
NASA-TV re-transmission from K6BEN-ATV.
|
 |

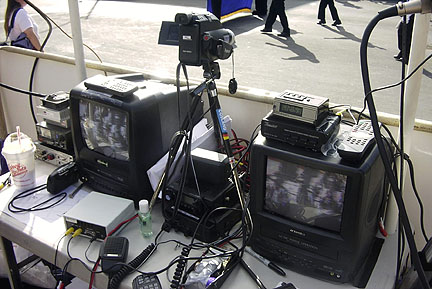

Video platform for Veterans Day Parade, across from Reviewing Stand, provided recording and
video transmission to K6BEN ATV repeater.
|
 |
Equipment for Veterans Day Parade video platform with to receive simplex ATV, re-transmit to
K6BEN, and provide voice comms.
|
 |

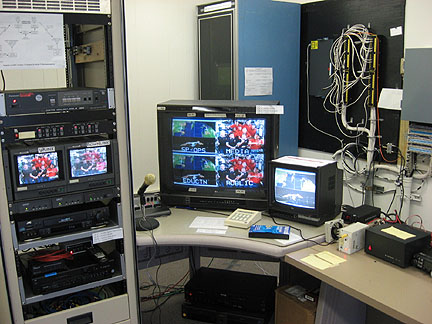

NASA TV re-transmission equipment at Ames Amateur Radio Club to K6BEN-ATV repeater.
|
 |
NASA TV re-transmission equipment when first re-assembled at Ames Amateur Radio Club.
|
 |

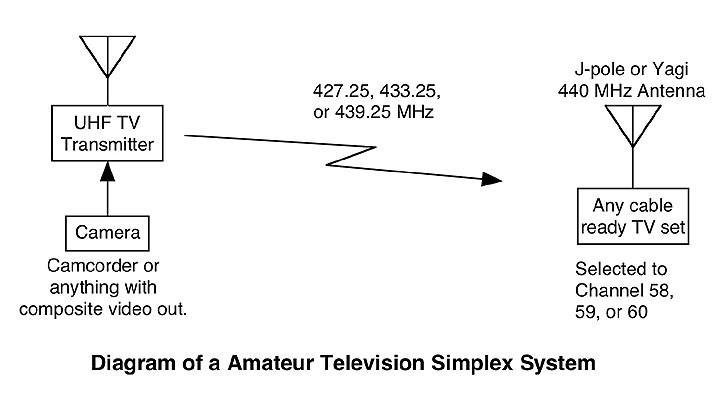

| ATV as a simplex system diagram |
 |

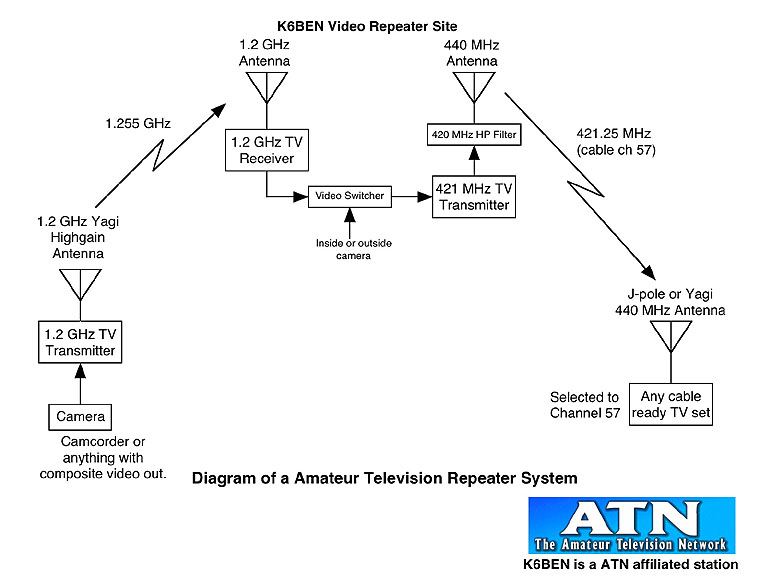

| K6BEN-ATV repeater diagram |
